A&E SPECIFICATIONS

• The rack shall include LED light bar kit shall feature two light bars with magnetic strips to provide pure white light inside the rack. Each bar shall measure 5/8 in. x 5/8 in. x ______ (16 in., 40 in., 60 in.). The kit shall include a power supply and a ____________ (rocker, proximity) switch with mounting hardware.

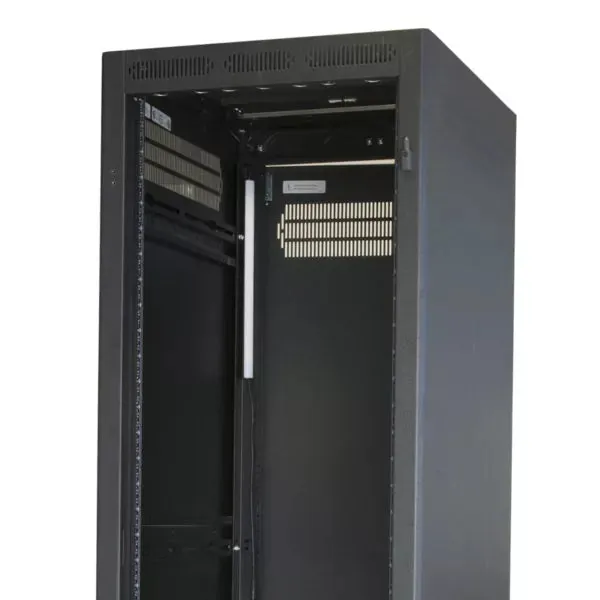

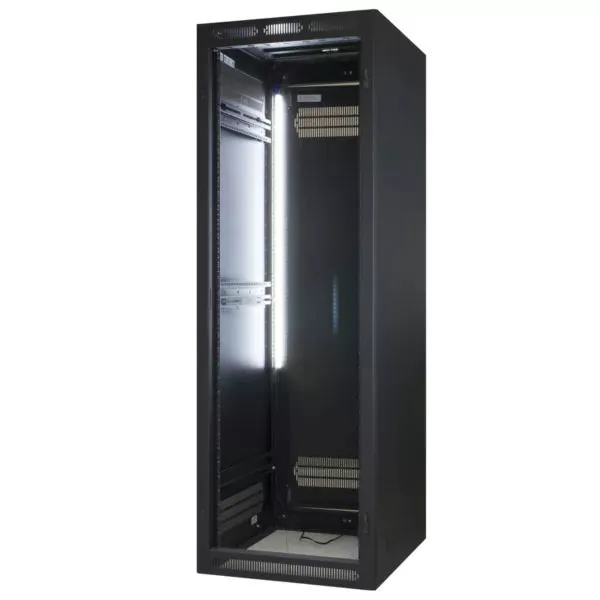

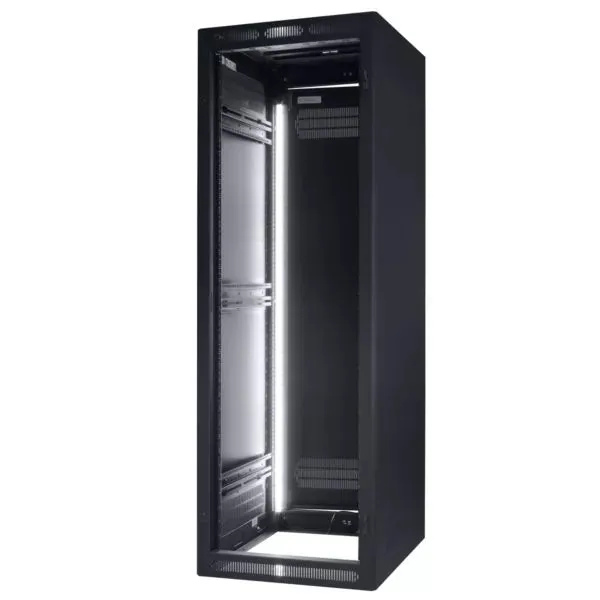

Magnetic-mount LED light bars are typically mounted vertically in rear rack corners. The switch can be mounted virtually anywhere inside or outside the rack . Video shows optional proximity switch, which turns on when a presence is detected.

FEATURES

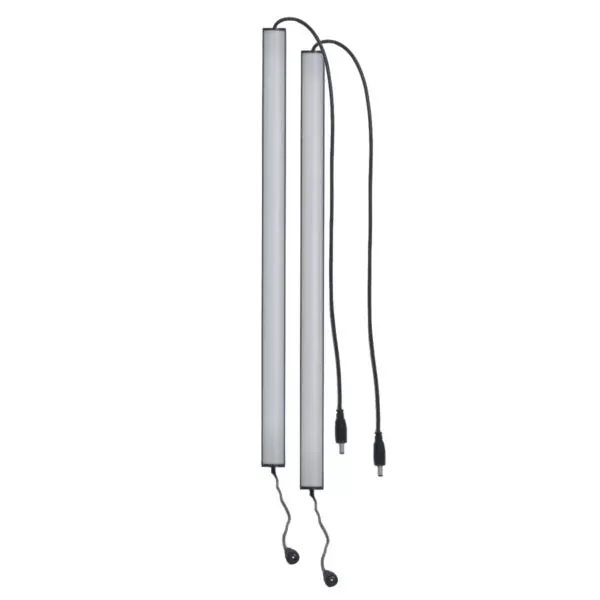

• Two (2) LED light bars with magnetic strips attached

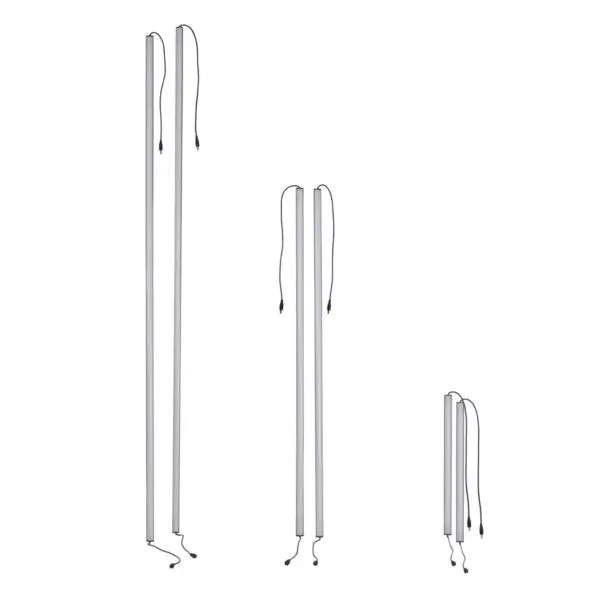

• Each bar measures 5/8 in. x 5/8 in. x length of choice (16 in., 40 in., 60 in.)
• Pure white light
• Power supply: 12VDC 3A (36W)
• Standard rocker switch (manual on/off) or proximity switch (automatic on/off when presence is detected)
• Includes mounting brackets, hardware, and tape pads to mount activation switch

TECHNICAL DOWNLOADS

• Spec Sheet:   (16 in. w/rocker switch)
• Spec Sheet:   (16 in. w/proximity switch)
• Spec Sheet:   (40 in. w/rocker switch)
• Spec Sheet:   (40 in. w/proximity switch)
• Spec Sheet:   (60 in. w/rocker switch)
• Spec Sheet:   (60 in. w/proximity switch)
