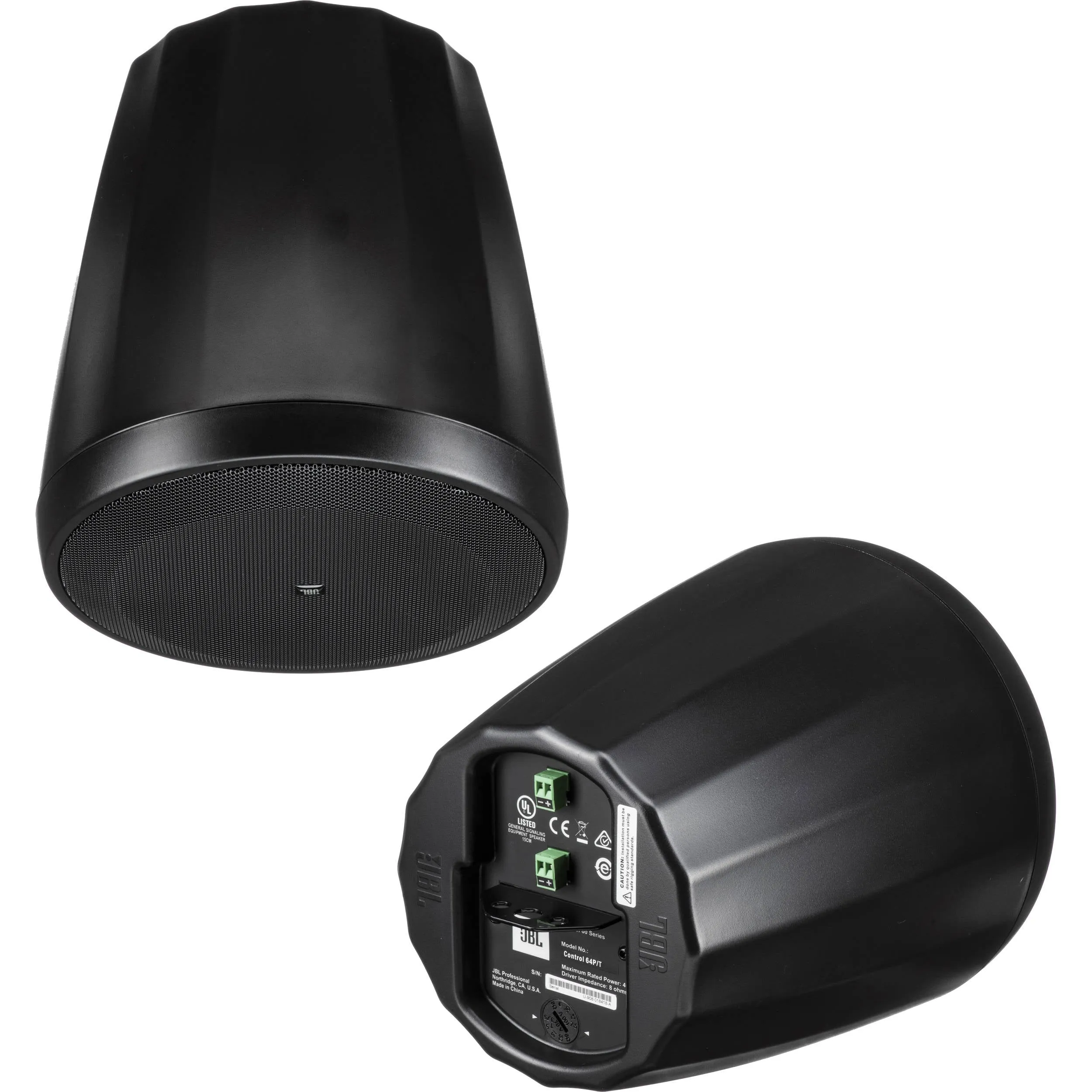

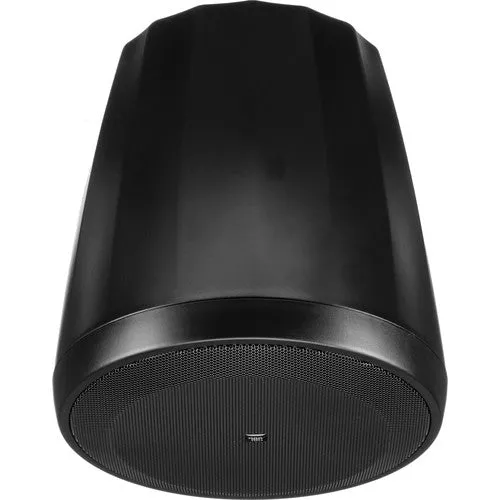

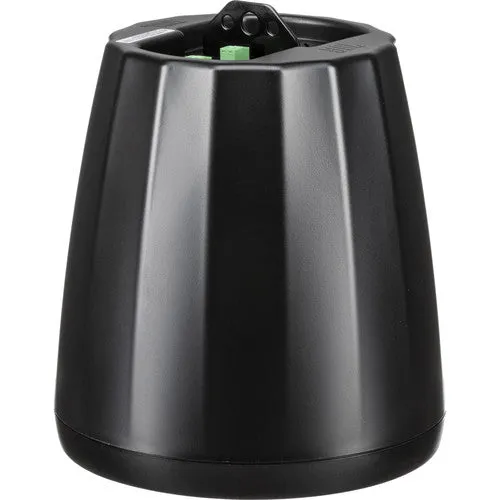

The black Control 64P/T from JBL is a pendant loudspeaker that provides full-range audio in a compact design well suited for retail, restaurants, hotels, casinos, fitness centers and more. It features a 4.0" full-range driver that delivers high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and offers a sleek look. The 8-Ohm speaker provides 120° of consistent conical coverage, offers a 100W (continuous) power handling capability, and is compatible with a variety of installation sound systems. The unit also has a 30W multi-tap transformer for professional installs. The Control 64P/T ships with two suspension cables systems, two 2-pin removable locking Euro-block connectors, and two rubber covers for Euro-block connectors.
Features
Compact Design
4.0" Full Range Driver
Hanging Hardware with 15' Steel Cable
120° Conical Coverage
100W Power Handling
30W Multi-Tap Transformer
Full Grille
Specifications
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
For 100 Hours: 40 W RMS 160 W Peak For 2 Hours: 100 W Program 50 W RMS 200 W Peak
Constant Voltage / Transformer Taps
100 V: 30 / 15 / 7.5 W 70 V: 30 / 15 / 7.5 / 3.7 W
Impedance
8 Ohms
Drivers
Full-Range Driver
4" / 101.6 mm Polypropylene-Coated Paper
Full-Range Voice Coil
0.8" / 20 mm
Performance
Frequency Range
85 Hz to 14 kHz ±3 dB
Frequency Response
65 Hz to 15 kHz -10 dB
Maximum SPL
105 dB (Continuous) 111 dB (Peak)
Sensitivity
88 dB
Coverage Angle
120° H x 120° V
Coverage Angle
120° at 4 kHz (Conical)
Directivity
6.2 (Directivity/Q Factor) 7.3 dB (Directivity Index)
Maximum Input Voltage
18.2 V RMS 36.4 V Peak
Transformer Insertion Loss
0.94 dB at 3.7 W 0.89 dB at 7.5 W 0.83 dB at 15 W 0.94 dB at 30 W
Connectivity
Inputs/Outputs

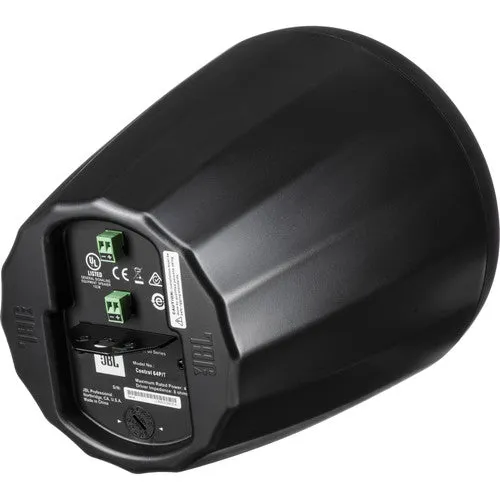

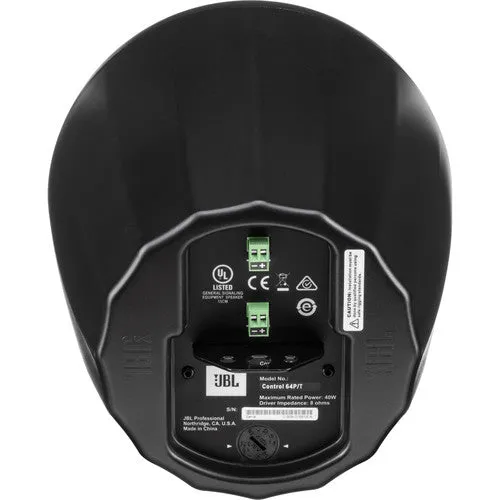

2x Block 2-Pin Screw Terminal
Maximum Wire Gauge
12 AWG / 2.5 mm
Environmental
Certifications
UL
Environmental Protection
Dust/Water-Resistant (IP44)
Physical
Color
Black
Mounting
Suspension
Construction Material
High-Impact Polystyrene, Metal Grille
Dimensions
10.2 x 9.3" / 259.1 x 236.2 mm
Weight
5.2 lb / 2.4 kg
Packaging Info
Package Weight
13.5 lb
Box Dimensions (LxWxH)
20.8 x 13.2 x 10.8"
JBL C64P/T Full-Range Pendant Speaker (Black, Pair) - 4"
